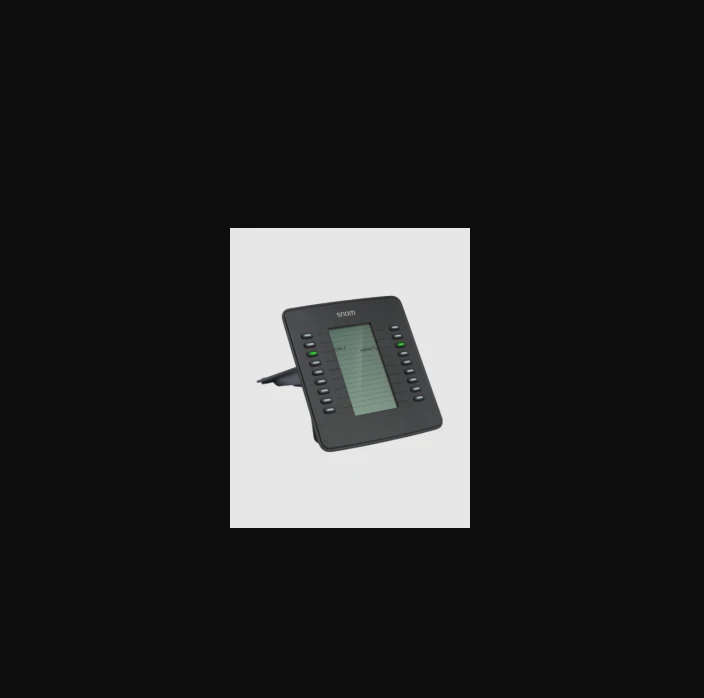

Snom - D7 - Expansion Module

High performance, high resolution, easy-to-use expansion module. Note: When two or three modules are used with one phone a separate power supply needs to be connected to the second module.

Highly Versatile The D7 expansion module features 18 multicolor LED keys which can be programmed with all functions available known from Snom phones like line, speed dial, busy lamp field, presence indication, and many more. The call or presence status of your contacts is presented by the D7's multi-color LED keys at any given time. The high-resolution display provides a perfect visual interface that can be easily configured and labeled via the phone's web interface or directly on the phone itself.

Ease Of Use Using the D7 could not be easier: simply connect the USB cable and it's ready to use. Even power is supplied by the host phone. Three D7 expansion modules can be daisy-chained to add up to 54 function keys to your phone. The last D7 in the chain offers a USB port to connect other peripheral USB devices to the host phone. Thus, A USB headset or a WLAN stick can be used. The D7 is the perfect addition to any Snom 7-series desk phone with a USB port

Features High-resolution graphical display with backlight 18 freely programmable multicolor LED function keys Dual-angle foot stand: 46° and 28° Daisy chainable Fully configurable via host phone Powered by the host phone

Installation Plug and Play Completely configurable via host phone

Specifications, Weights and Dimensions Dimensions (approx.): 5.43" x 1.3" x 6.18" With desk stand: 5.43" x 8.66" x 4.92" Weight (approx.): 0.76 lbs Input voltage: 5Vdc (SELV) Power supply: USB or 5Vdc power adapter, 10 Watts USB 2.0 cable with angled type A plug USB 2.0 port, type A Environmental conditions: Ambient temperature: 0°C to 35°C (32°F to 95°F) Non-operation: -10°C to 45°C (14°F to 113°F) Humidity: 5% to 95% (non-condensing) Color: Black

The Snom expansion module is suitable for the following: Snom D715 Snom D717 Snom D725 Snom D735 Snom D745 Snom D765 Snom D785

In the box Base unit Foot stand Quick Start Guide
