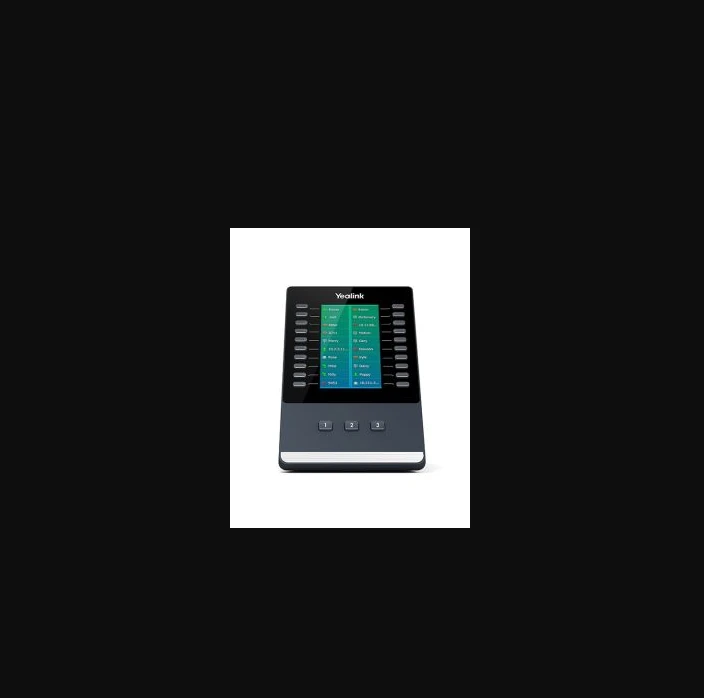

Yealink - EXP50 - Expansion Module

The Yealink EXP50 Color-screen Expansion Module for Yealink T53/T53W/T54W/T57W/T58A IP phones is designed to expand the functional capability of your SIP phone to a whole new level. It features a large 4.3-inch color-screen LCD, giving you a vivid visual experience. In addition, it provides you with a simple user interface and advanced call handling capabilities. For example, three pages of 20 flexible buttons shown on the display can be programmed up to 60 various features. The functionality of Yealink T53/T53W/T54W/T57W/T58A IP phones will also be extended by the EXP50, you can set the provided multifunctional line keys as BLF, speed dial, call forward, transfer, call park, call pickup, etc. The Yealink EXP50 Color-screen Expansion Module is an ideal solution for receptionists, administrative assistants and contact center workers and give you the ability to monitor contacts and manage a large volume of calls with ease.

Specifications

Display 4.3" 272x480-pixel color display with backlight 16-bit depth color Three page views are possible Different color icons for each function shown on the LCD

Feature Keys and Indicator 20 physical keys each with a dual-color LED 40 additional keys through page switch 3 independent control keys with illuminated LED are used for fast switching pages Programmable for shared line, BLF List, call park, conference, forward, group pickup, group listening, LDAP, XML Browser.

Features Wallpaper, screensaver, power saving Stand with 2 adjustable angles For support of two or three Expansion Modules, an external Yealink power adapter (5V/2A) is required. Up to three EXP50 can be attached on Yealink T53/T53W/T54W/T57W/T58A IP phones USB port (2.0 compliant) for data in and out USB port (2.0 compliant) for: wired/wireless USB headset Wi-Fi through WF40/WF50 for T53 USB call recording through USB flash drive Max power consumption (PSU): 1.5W Dimension (W*D*H*T): 196.5mm*124.0mm*137.5mm*42.6mm Applies to Yealink T53/T53W/T54W/T57W/T58A Operating temperature: -10~50°C (+14~122°F) Operating humidity: 10~95%

In the box Yealink EXP50 Color-screen Expansion Module Stand Connecting Sheet USB Cable Screwdriver Screws Quick Start Guide
